Retail & Commercial Greenhouse Arch 6500 Series

ROLL-FORM

The arches and purlins in the Cold Frame Series all feature Superior strength ROLL-FORM steel for unmatched structural integrity. ROLL-FORM sections direct more strength to the longer axis of the metal. Conley's use of COLD FORMING procedures protect the metal's galvanizing features.

Flexibility

Conley’s continuous coil process allows you to access sections of steel as long as necessary to fit your unique needs. Incorporating continuous coils of pre-galvanized metal, ROLL-FORM mills incur virtually no material waste and can generate sections of steel as long as necessary. This means that Conley’s can form wider houses out of a single piece of steel versus some manufacturers who are forced to “splice” their trusses together.

Value

Components of the Cold Frame Series structures are shipped to the customer pre-punched and cut to length, simplifying the installation process. Given the shapes of the ROLL-FORMED components, they are naturally able to be nested one into the other during shipment, substantially reducing freight rates.

Structure Questions?
Specifications Features Options Installation Guides
VIEW OPTIONSView in BrowserDownload a PDFView Brochure

  • Compare

    Some key characteristics featured in the Cold Frame Series are compared below


Type of Roof
Engineered Widths
Column Spacing
Gutter Heights

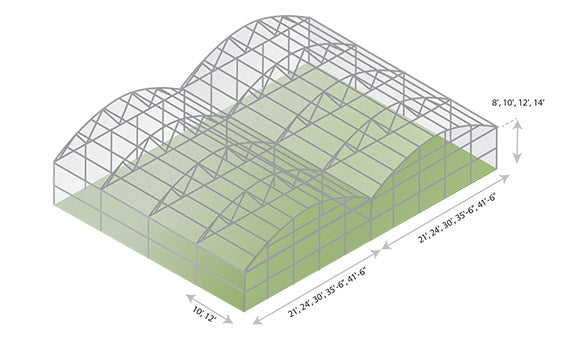

Arch 6500 Gothic Arch 18', 21', 24', 30', 35'-6", 41'-6" 10', 12' 8', 10', 12', 14'
Coldframes Series 1100

Type of Roof
Available Widths
Peak Heights
(Per Width)
Sidewall Heights
Cold Frame 1000 Ground-to-Ground Arch 16', 20' 7'-6", 10' N/A
Cold Frame 1100 Arch with Sidewalls 20', 24' 8'-6", 9' 3'-6", 6'
Cold Frame 1200 Gothic Arch
with Sidewalls		 30', 35' 12'-6", 14' 4', 6'
Mountain 1200 Gothic Arch with Sidewalls 20', 24', 30' 12'-1", 12'-10", 14'-6" 6'
